Mobile Military

Triage Device


Front RenderBanner.png



Our team was commissioned to give physicality to an innovative, blood monitoring algorithm that existed on a small set of printed circuit boards. The device would calculate and display heart rate, blood-oxygen (SpO2) and the Compensatory Reserve Index (CRI) using one, simple finger-clip sensor input. CRI is a breakthrough hemodynamic parameter that provides real-time, noninvasive indication of changes in intravascular volume relative to the individual patient’s response to blood loss. Put simply, how much blood is in the patient as a percentage of maximum.




FBCP Boards.JPG

DESIGN CONSIDERATIONS:

  • Design Enclosure

  • 2.4” Display

  • High Impact Body

  • Sterilizable Plastic Materials

  • IP33-rated

  • MIL-spec

  • 2-shot Injection Mold

  • Two-button Operation

  • One replaceable AA Battery

  • Hinged battery door

  • Sealed Battery Compartment

  • Weatherproof Connectors:DB9 and Micro USB

  • Insert-molded Lanyard Clip

  • Possible Secondary Belt Clip

  • 2 Color Schemes



Medivac Choppers.png

Context

This device was first targeted for use in a military medevac environment. Several stringent requirements had to be met to endure the testing and approval process.






Early Concepts

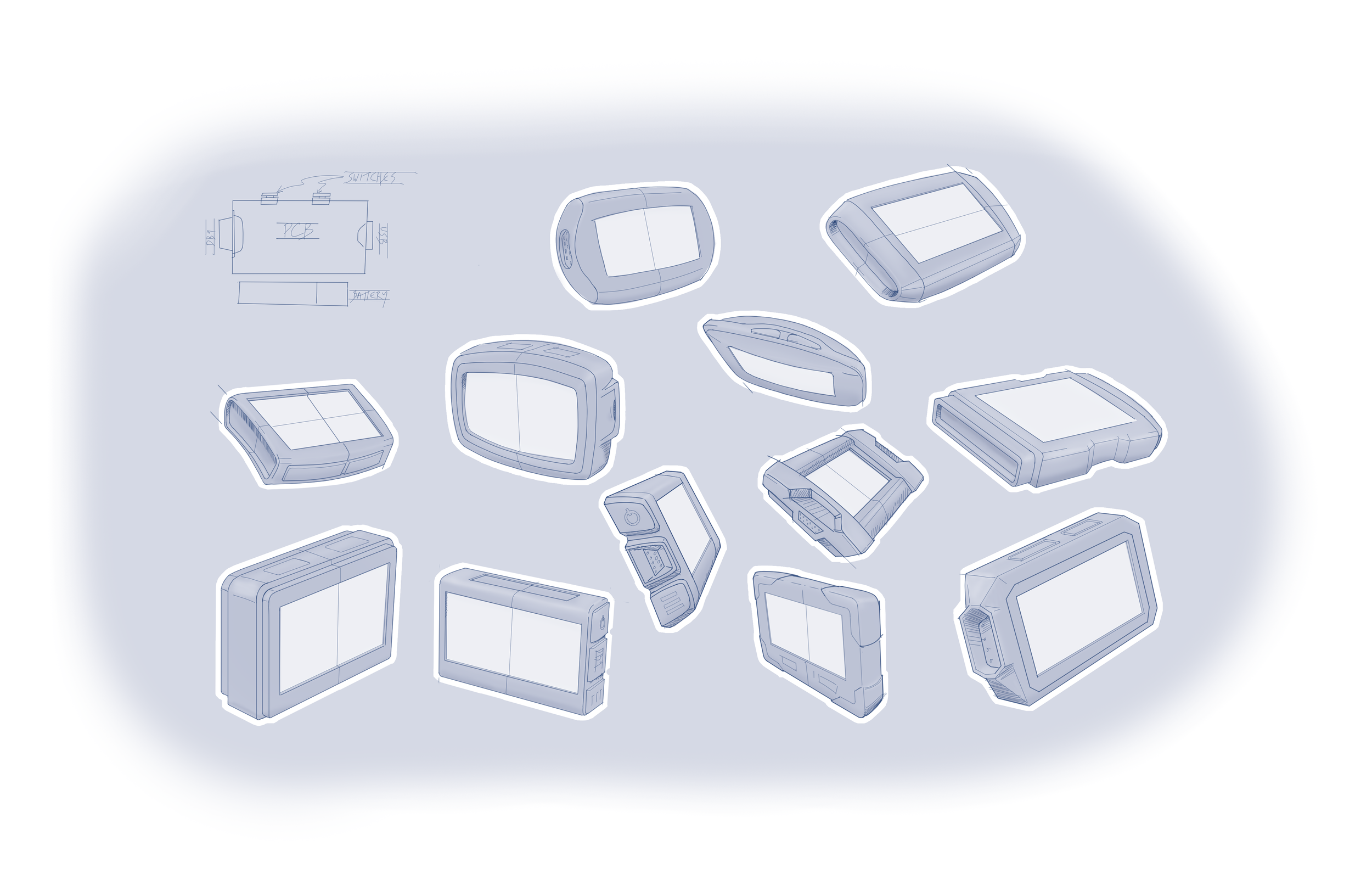

FBCP Early Sketches.png


Early Sketches 3.png




CONCEPT 1

CONCEPT 1

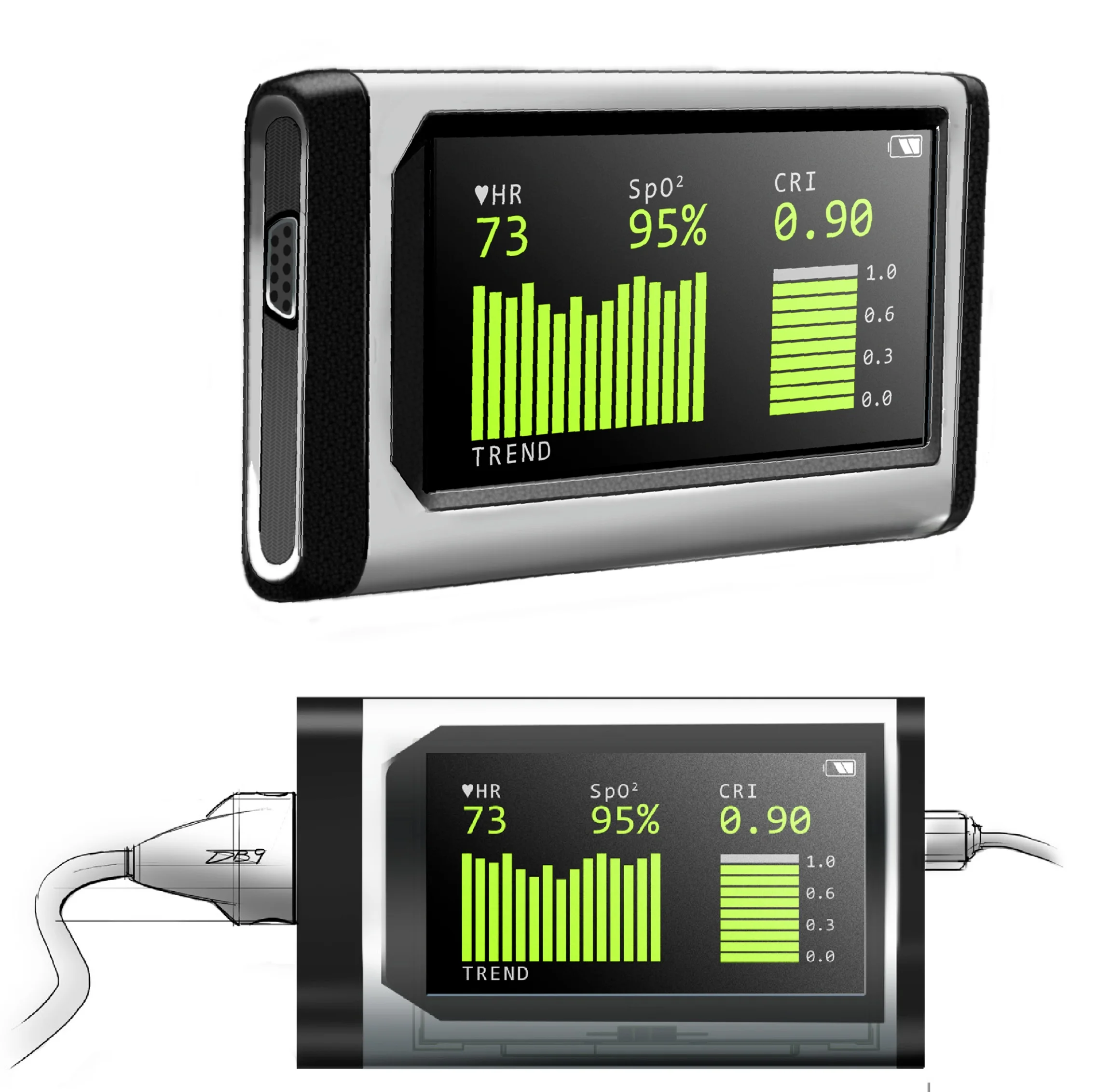

CONCEPT 2

CONCEPT 2

CONCEPT 3

CONCEPT 3





Concept Refinement Phase - cONCEPT a


CON 1 threeQ.png

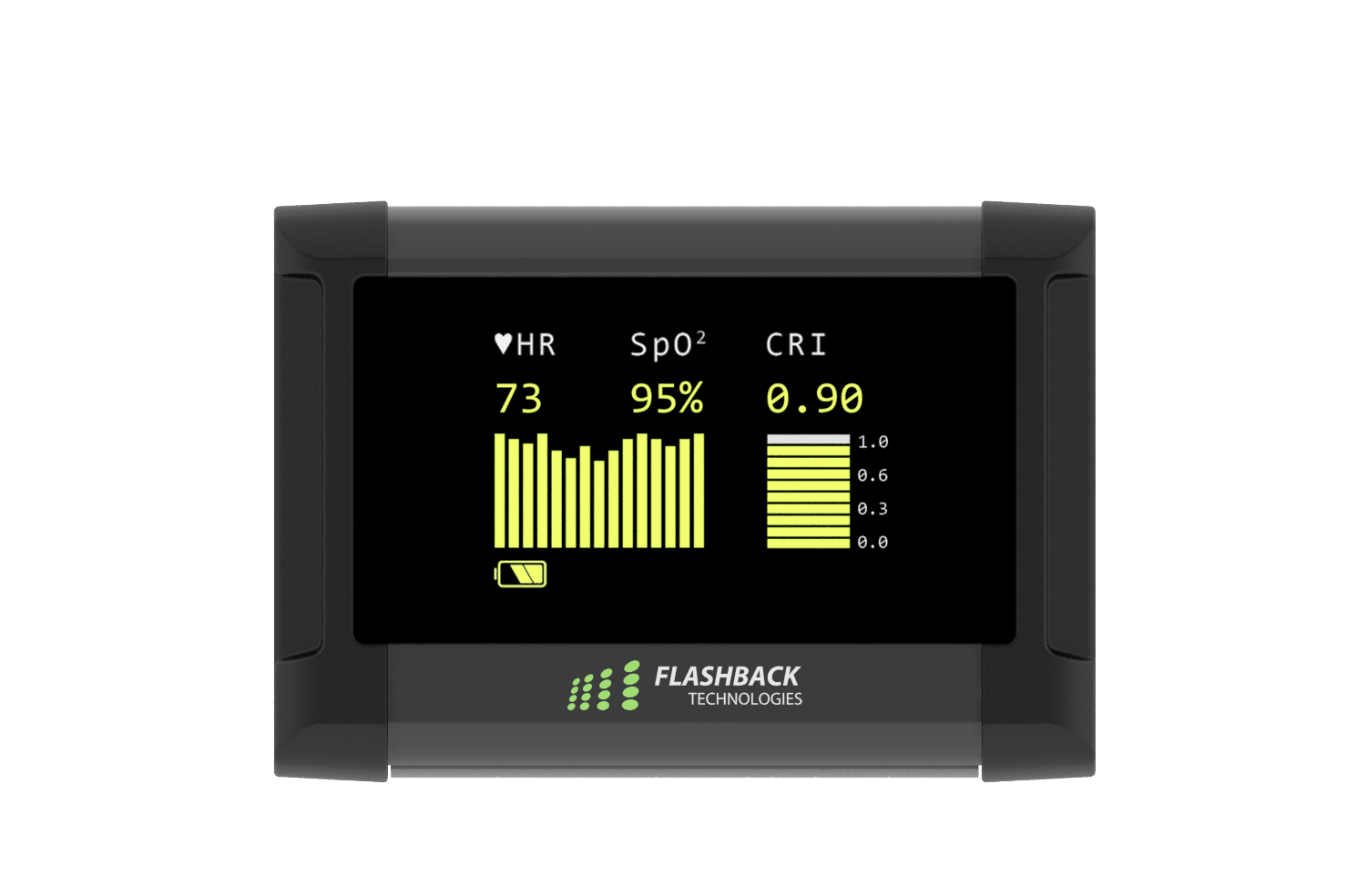

CON 1 Front.png
CON 1 XPL.png




Concept Refinement Phase - cONCEPT b


Concept 2 threeQ.png

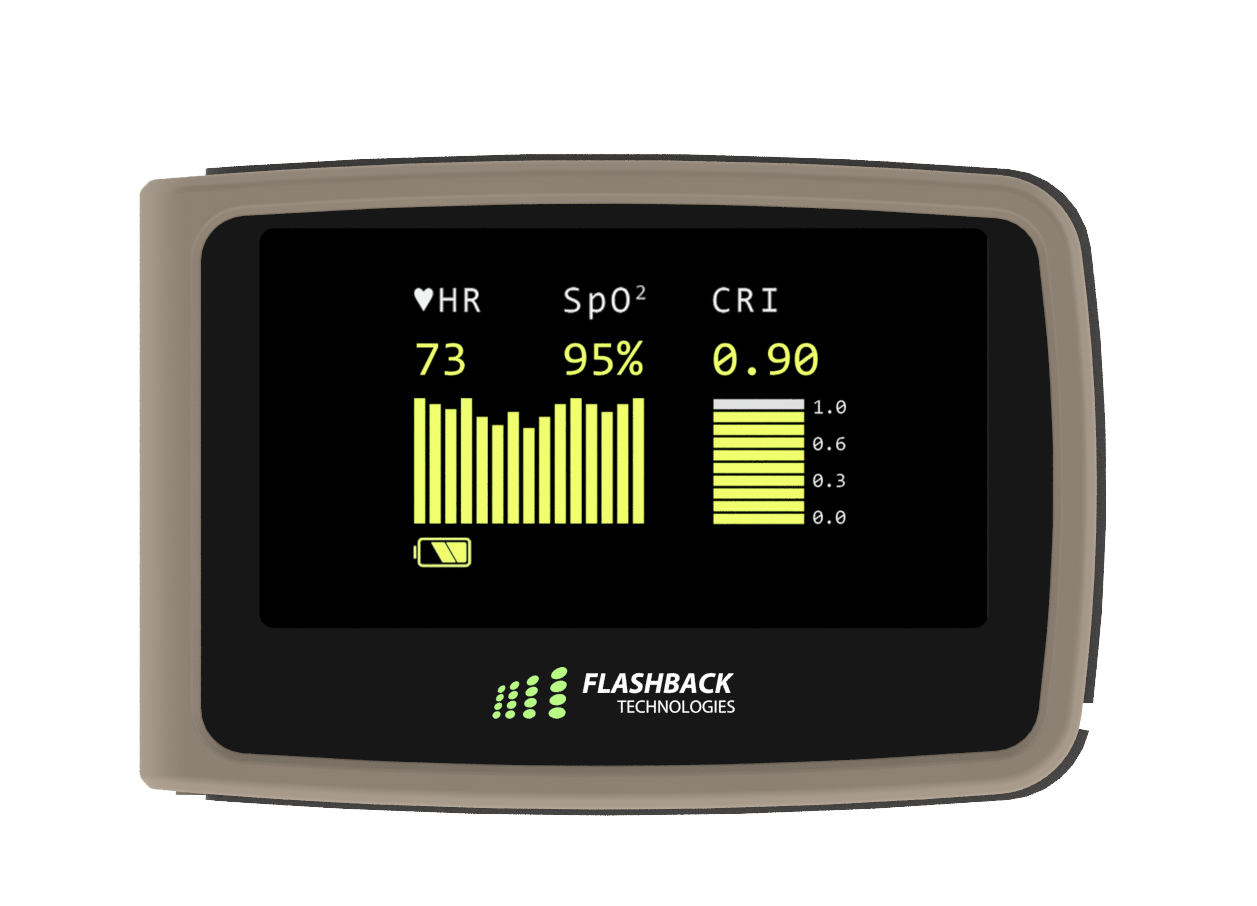

Concept 2 Front.png

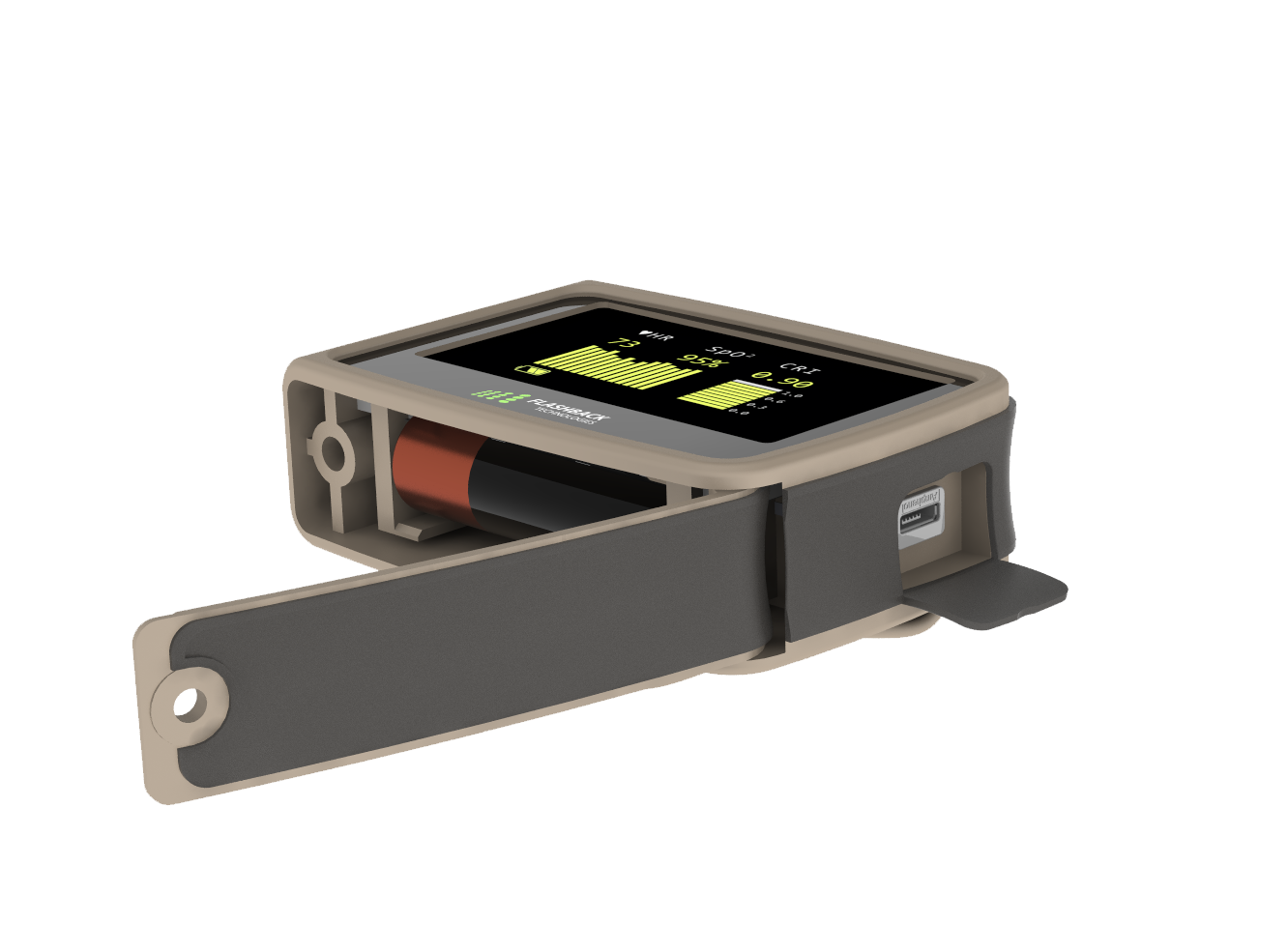

Concept 2 bottom open.png




Initial Prototype - rEVISION a

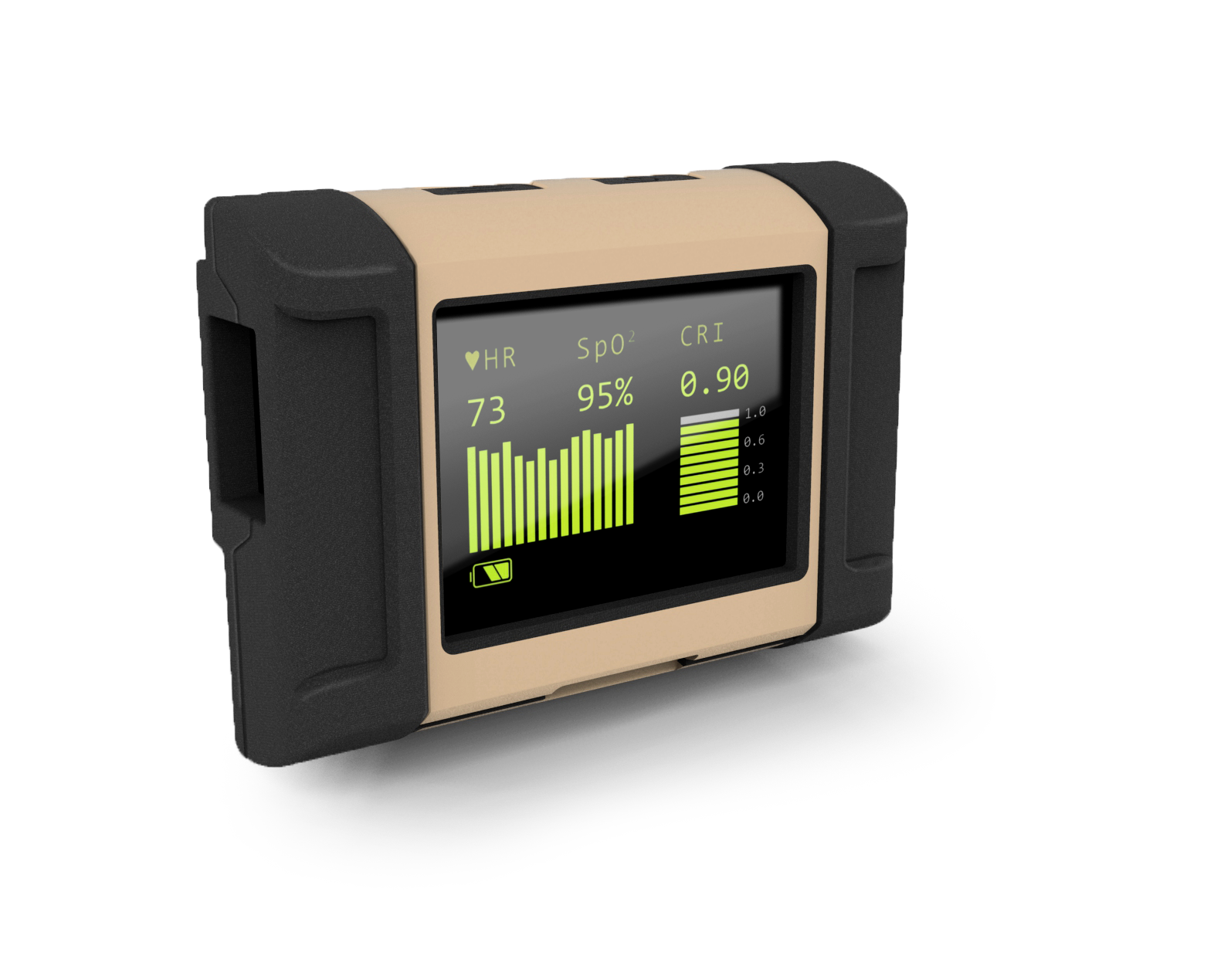

FBCP DEV Front.png

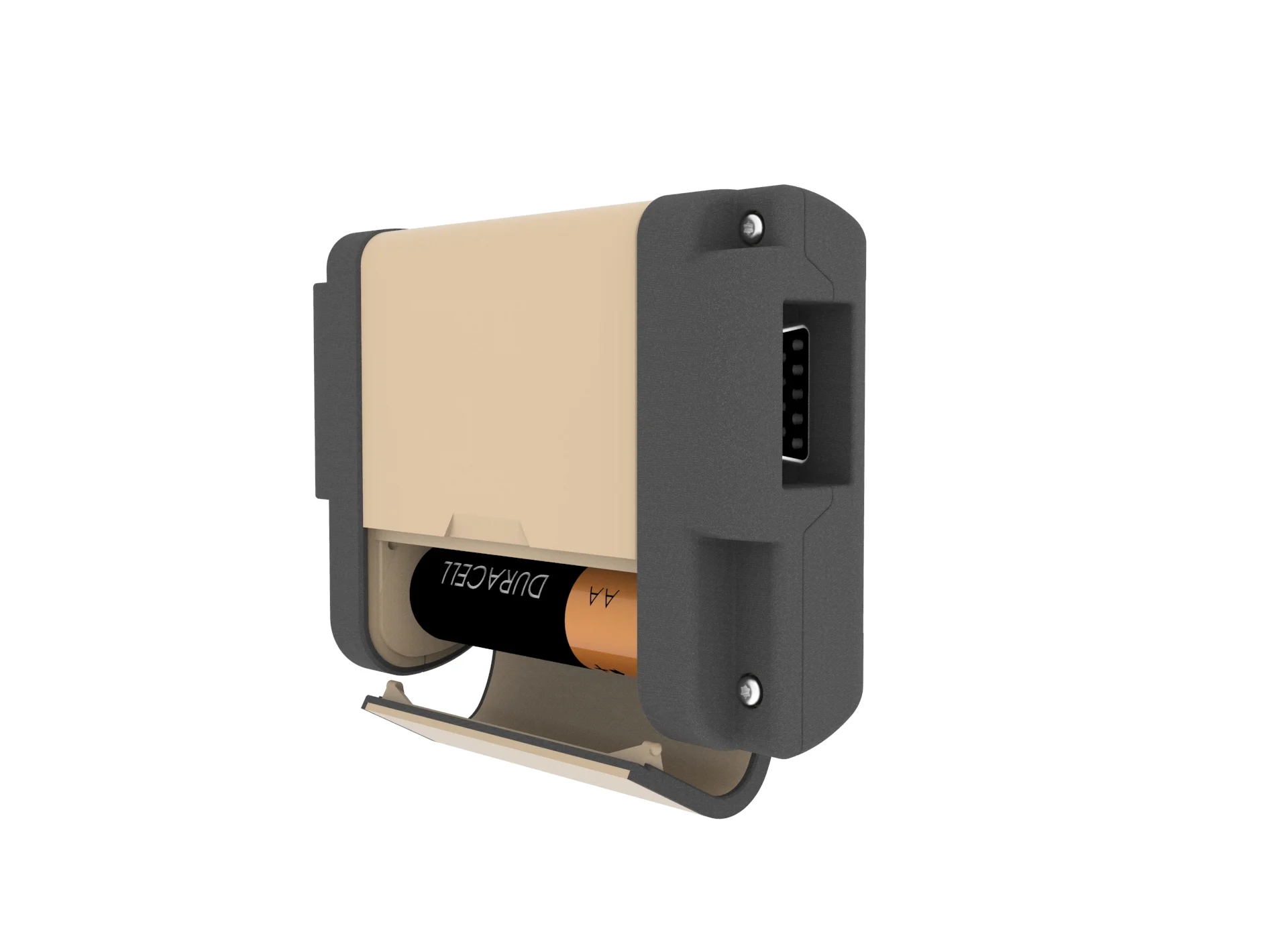

FBCP DEV Back w batt door open.jpg

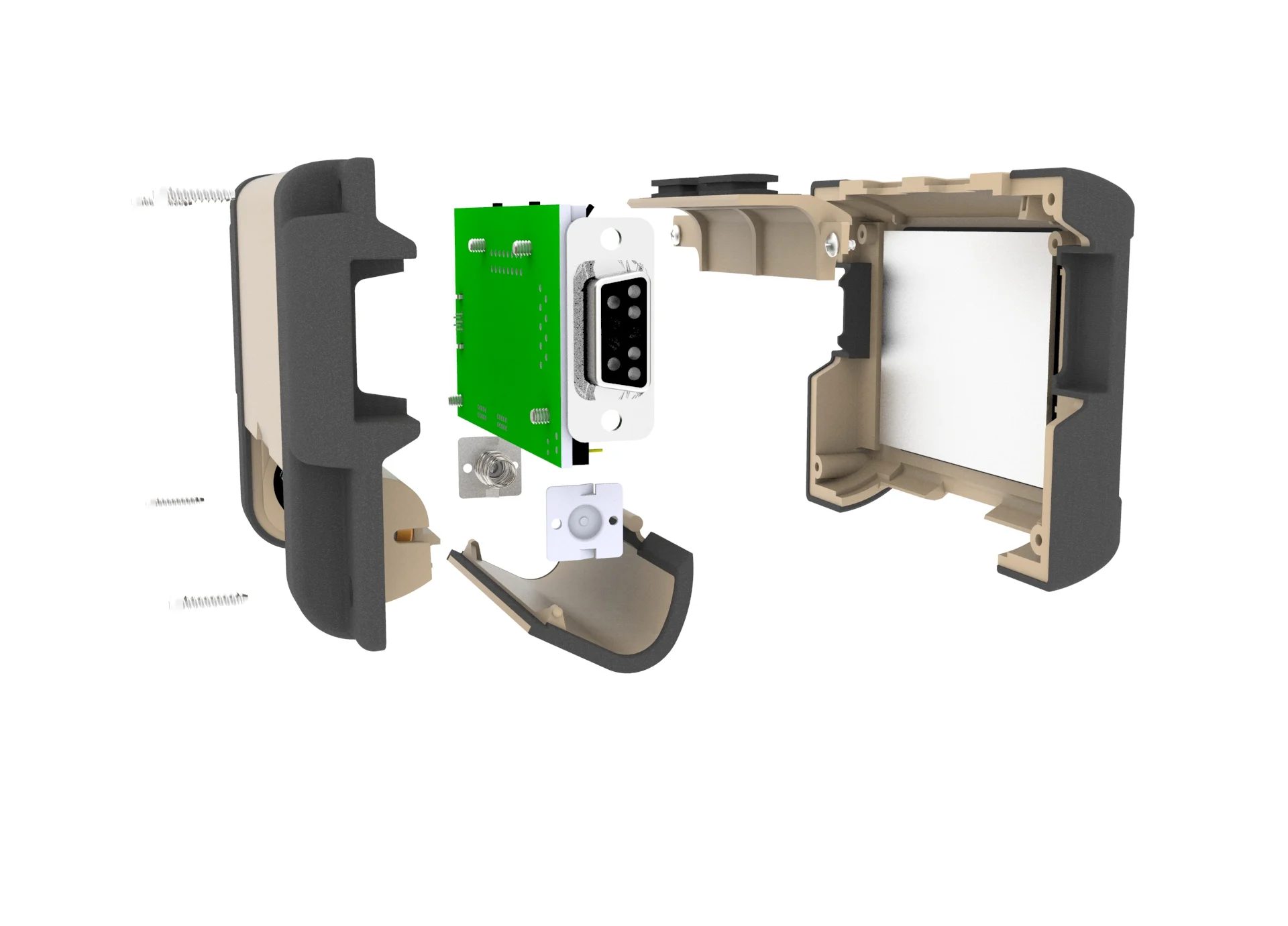

FBCP DEV Explode Back.jpg
FBCP DEV Explode Front.jpg



Tech Drw Array.png



20 prototypes of Revision A were built for field testing and manufacturing viability.




Cast protos.png




Final Prototype - rEVISION b for Military Testing

Feedback from Revision A resulted in several changes: battery door sealing strategy, button size, and the addition of a insert-molded lanyard clip.



3D prints.png


Final proto renders.png




Results:

On July 24, 2018, Flashback Technologies, Inc. was granted 510(k) clearance by the U.S. FDA for this, now dubbed the CipherOx® CRI M1 monitor. The M1 is Flashback’s first commercial CRI product to market and commercial sales of the M1 are expected to begin soon. Read the press release here.
