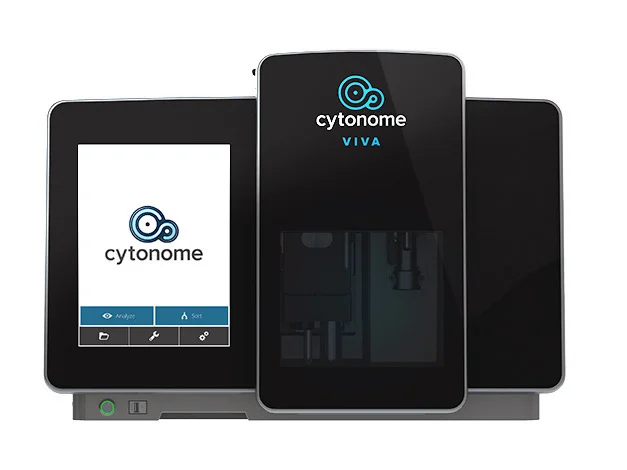

VIVA

Benchtop Cell sorter


CYBR Perspective Standard-W.png



Our team was commissioned by a medical device start-up who wanted to upset the laboratory device market with a compact version of a cell-sorting device that used to take up whole sections of laboratories by replacing them with this benchtop-sized model instead. They wanted to eschew the medical device aesthetic in favor of simplicity and accessibility.






DESIGN CONSIDERATIONS:

  • Sterilizable, corrosion-resistant materials required

  • Internal sheet-metal chassis design required

  • 12-inch touchscreen required

  • Operates in biohazard cabinet:
    maximum working dimensions of 50”W x 30”H x 24”D

  • 3 internal compartments: Sorting, fluidics, and computation

  • 3 operator/ technician access areas:

    Hourly – Sample loading
    Daily – Operational fluid loading
    Weekly – Pump maintenance



Asset 1-2.png


Client-provided files

This assemblage was provided by the client for inclusion in the primary assembly.




Asset 7-2.png


Sheet metal chassis

A structure was developed cooperatively with the client’s internal engineering team and our design and engineering team.





Process

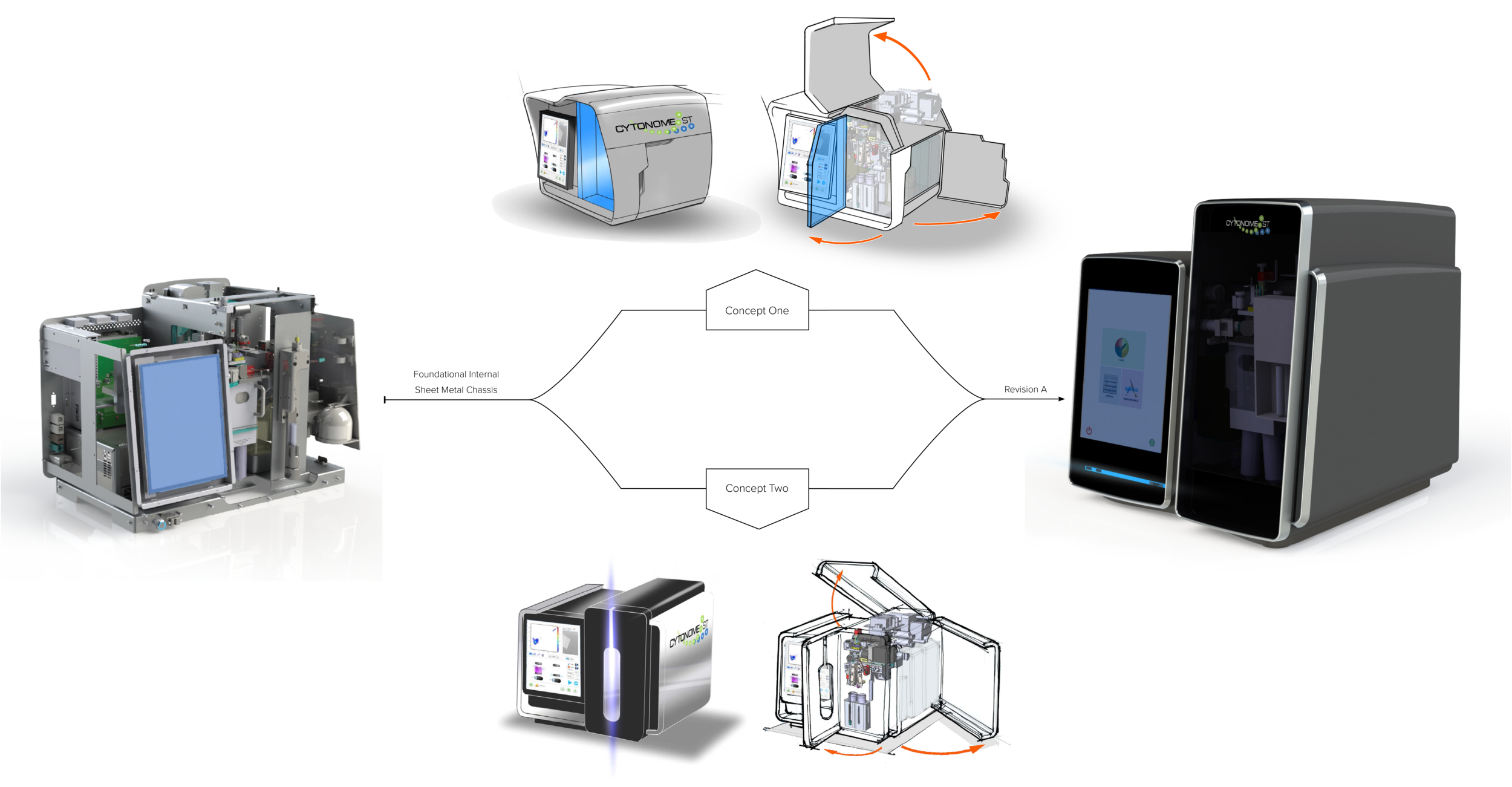

During our concept refinement phase, two conceptual directions were blended to achieve a functional form that was well-received by the client.






Cyto Process Page 2.png

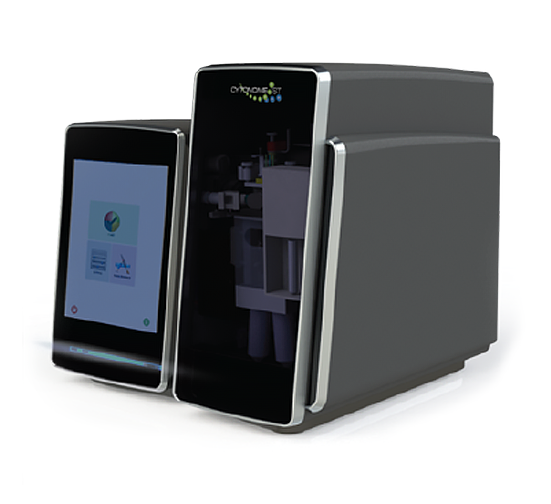

Revision A

Meeting all the enclosure challenges at that time, the first revision of the machine met client ideals but drew out complications that weren’t understood initially.

Asset 2-2.png

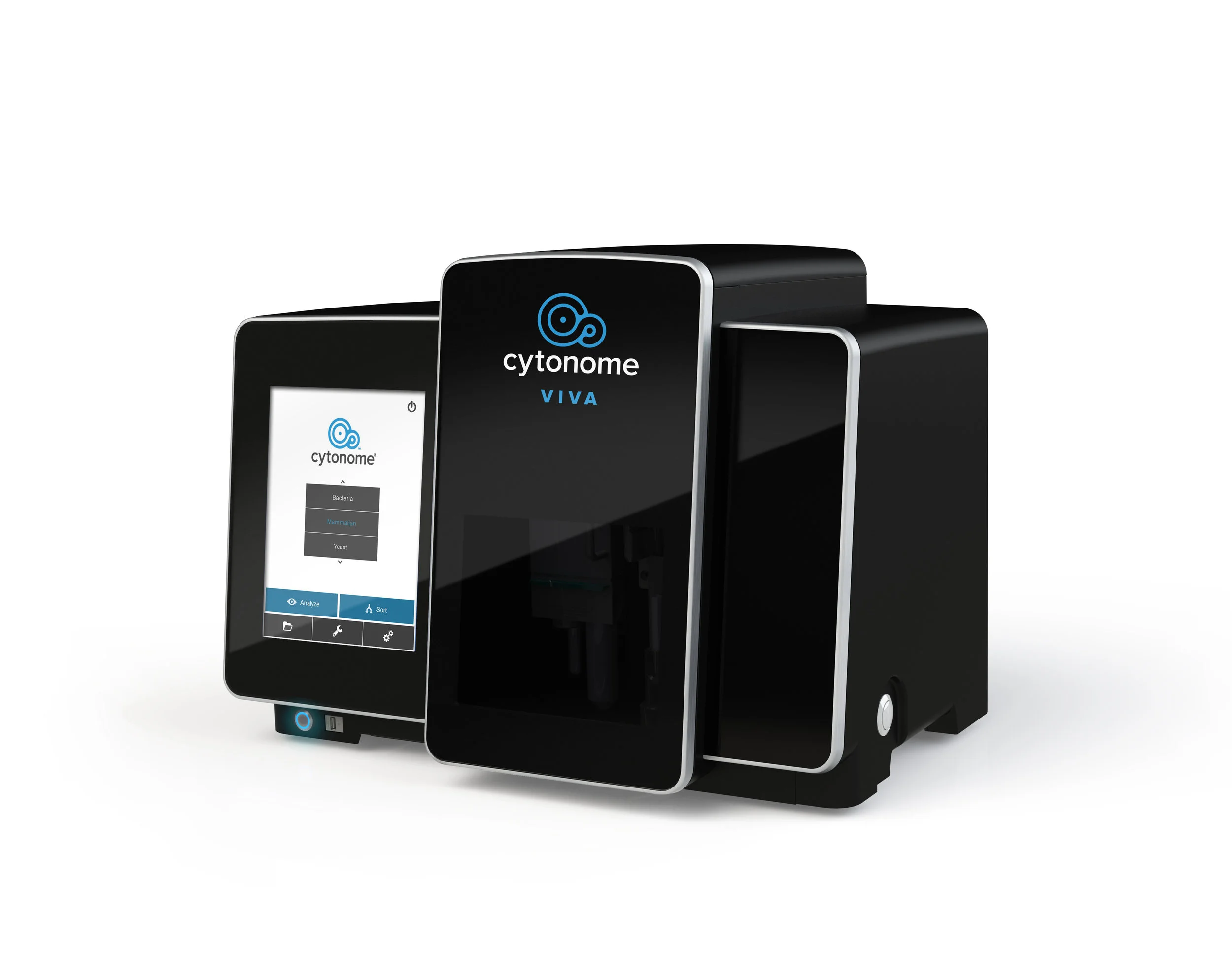

Revision B

Over a few subsequent months, the internals were rearranged and the enclosure grew in width to include superseded components.

Asset 2-2.png



open front.PNG


With and expected use of 1 to 2 times per hour, door access was afforded in the front, while keeping within the maximum operating dimensions, through a modified 4-bar hinge system.


Side open.PNG



With a less frequent access necessary, the side and top doors were made for low-level maintenance and repair.



CYBR 4-array.jpg

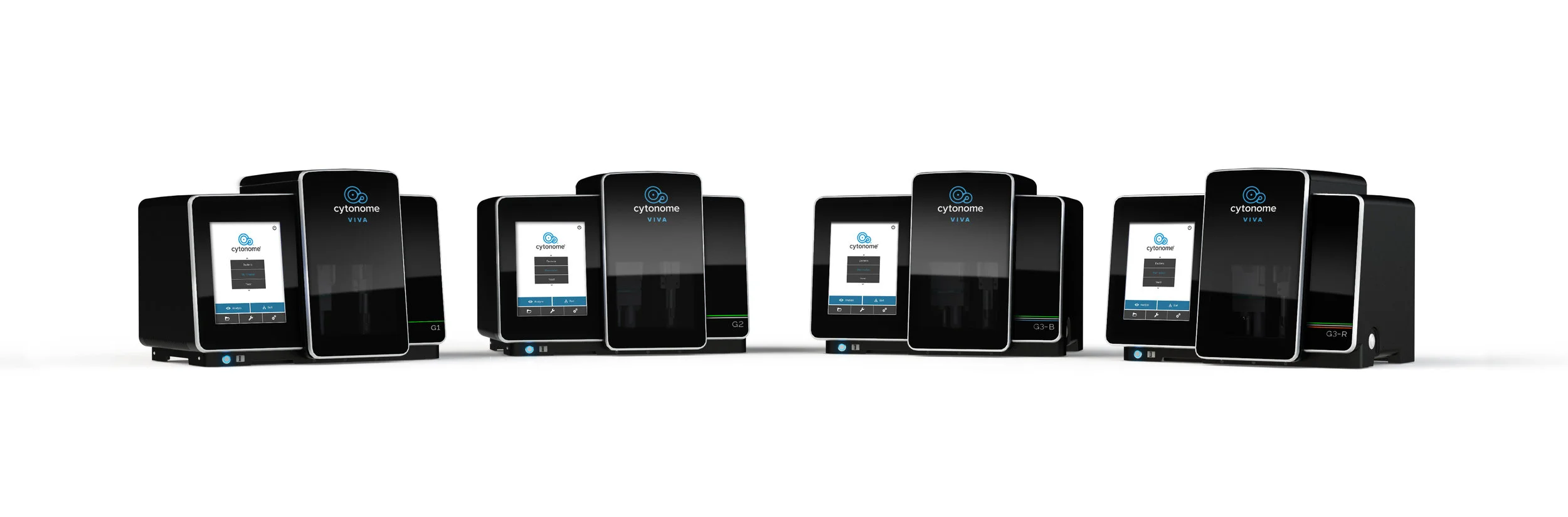

Four trim levels were planned based on specific configurations for different laboratory use-cases.

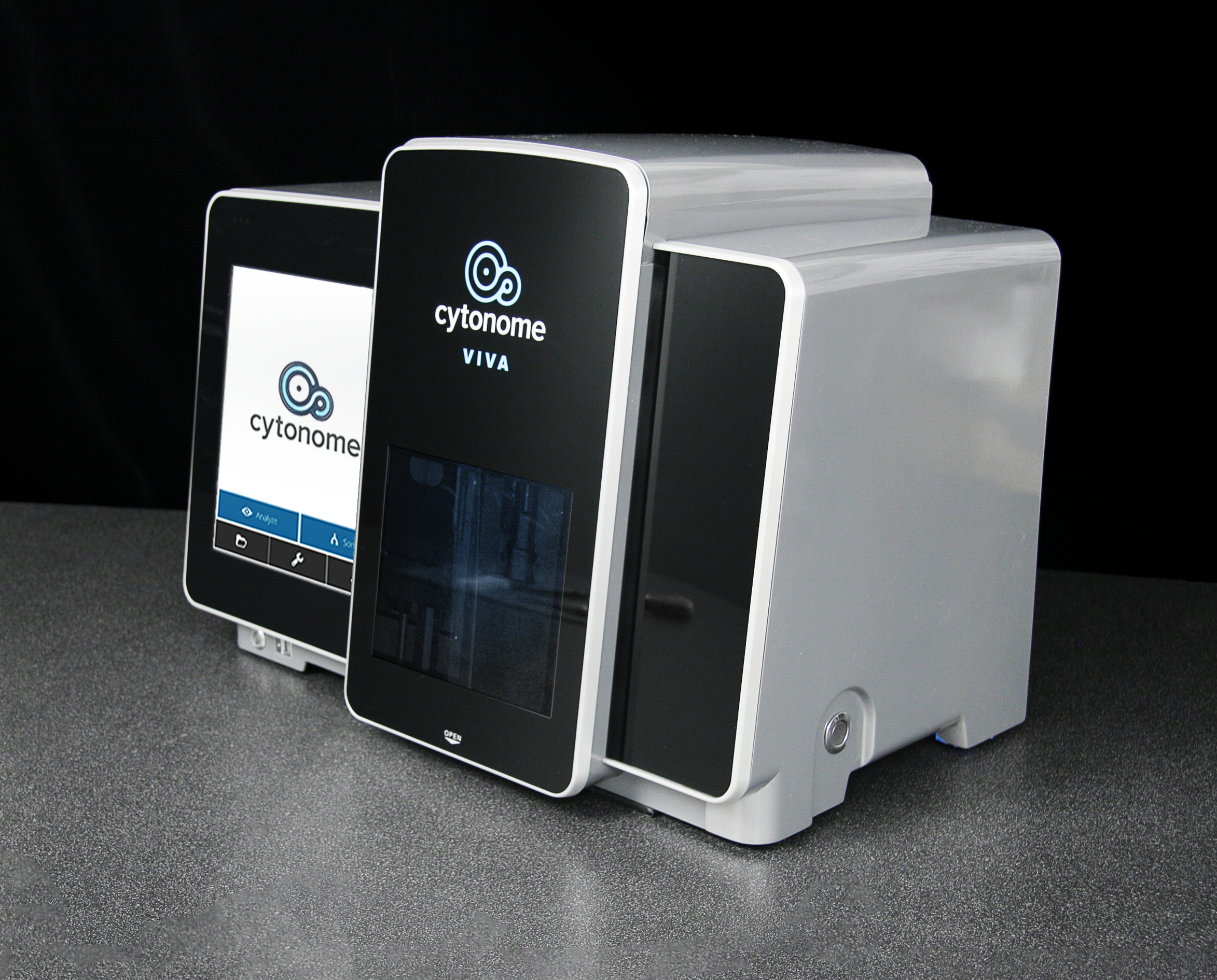

Working Prototype

Finally, a full scale working prototype was made from folded sheet steel, machined aluminum, custom glass, 3-D printed panels, and off-the-shelf electronics.


Model .png
